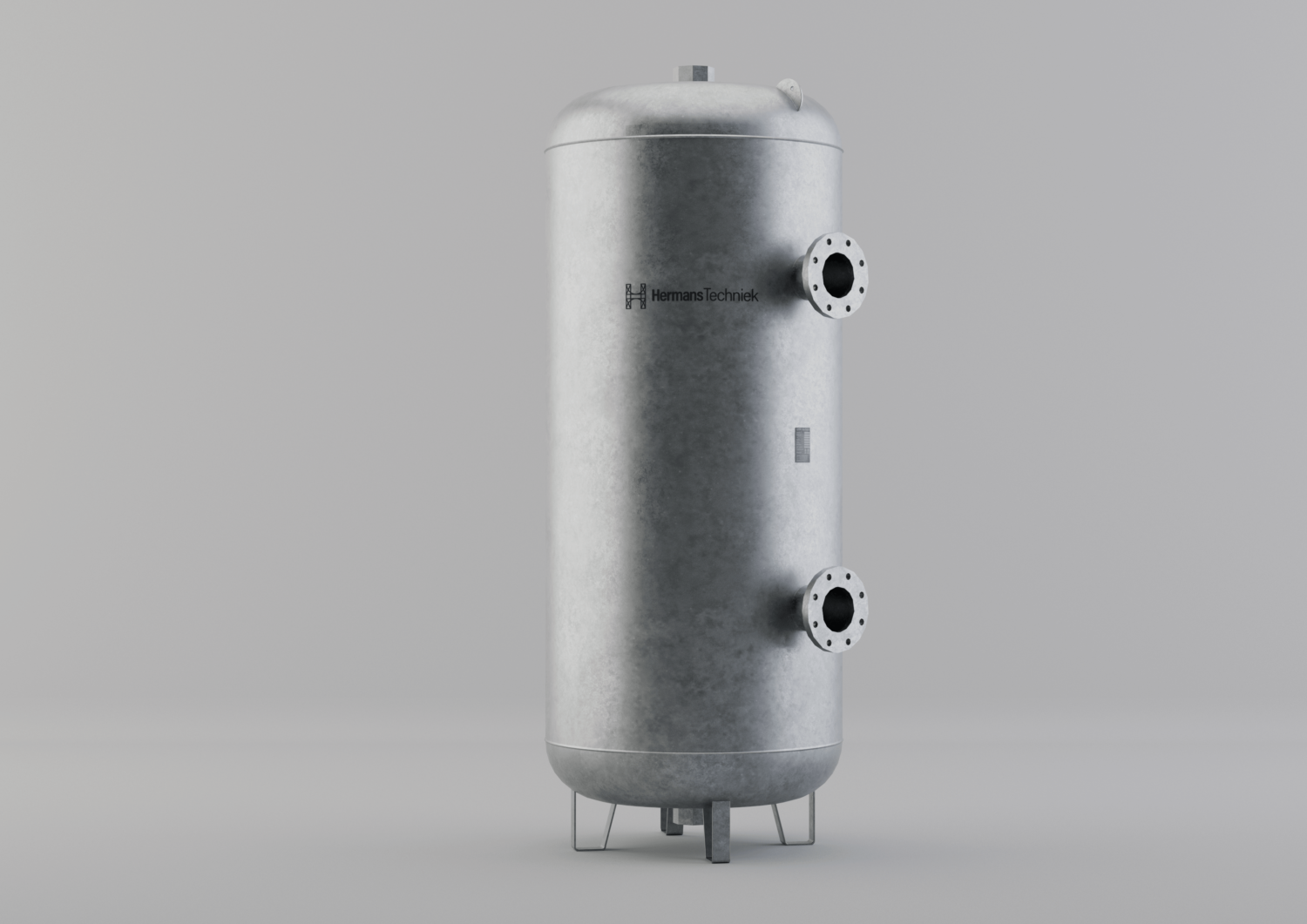

Cipex HT
Buffer Tanks

• Made to measure in steel (S235JR) or stainless steel at our PED category 1 approved factory, Cipex HT buffer tanks can meet the most exacting requirements and are frequently prescribed in consultants’ specifications, such as inner tubes, spreading plates, diffuser, manholes, etc.
• A quotation is drawn up with a dimensional sketch or technical specifications. Once the order is made, we create a production drawing and start the manufacturing process following customer approval.
• As a renewable energy heating solution, more and more projects use Cipex HT buffer tanks produced in line with the very latest green technology.
• We supply a wide range of buffer tanks, which can be manufactured according to individual customer needs, such as storage capacity, connections and dimensions. A highly efficient way to link together different types of heating systems, our boiler tanks can also be used with solar energy and other forms of carbon-neutral thermal energy.

• Buffer tanks: Carbon Steel.
• Work pressure: From 1,5 to 10 bar.
• Volume: 300 – 50.000 litres.
• Approval: Directive 97/23/CE PED, art./ 3.3. mill-test.
• Internal treatment: None.
• External treatment: Shot blasted sa 2,5 and with a Zink compound conservation.
• Connections: Venting, pressure gauge, supply and transport.
• Options: Victaulic groove, diffusers and horizontal/vertical position.

• CV installations, Cooling installations

• Made to measure in steel (S235JR) or stainless steel at our PED category 1 approved factory, Cipex HT buffer tanks can meet the most exacting requirements and are frequently prescribed in consultants’ specifications, such as inner tubes, spreading plates, diffuser, manholes, etc.
• A quotation is drawn up with a dimensional sketch or technical specifications. Once the order is made, we create a production drawing and start the manufacturing process following customer approval.
• As a renewable energy heating solution, more and more projects use Cipex HT buffer tanks produced in line with the very latest green technology.
• We supply a wide range of buffer tanks, which can be manufactured according to individual customer needs, such as storage capacity, connections and dimensions. A highly efficient way to link together different types of heating systems, our boiler tanks can also be used with solar energy and other forms of carbon-neutral thermal energy.

• Buffer tanks: Stainless Steel.
• Work pressure: From 1,5 to 10 bar.
• Volume: 300 – 50.000 litres.
• Approval: Directive 97/23/CE PED, art./ 3.3. mill-test.
• Internal treatment: None.
• External treatment: Shot blasted sa 2,5 and with a Zink compound conservation.
• Connections: Venting, pressure gauge, supply and transport.
• Options: Victaulic groove, diffusers and horizontal/vertical position.

• Drinking water installations

• Made to measure in steel (S235JR) or stainless steel at our PED category 1 approved factory, Cipex HT buffer tanks can meet the most exacting requirements and are frequently prescribed in consultants’ specifications, such as inner tubes, spreading plates, diffuser, manholes, etc.
• A quotation is drawn up with a dimensional sketch or technical specifications. Once the order is made, we create a production drawing and start the manufacturing process following customer approval.
• As a renewable energy heating solution, more and more projects use Cipex HT buffer tanks produced in line with the very latest green technology.
• We supply a wide range of buffer tanks, which can be manufactured according to individual customer needs, such as storage capacity, connections and dimensions. A highly efficient way to link together different types of heating systems, our boiler tanks can also be used with solar energy and other forms of carbon-neutral thermal energy.

• Buffer tanks: Carbon Steel.
• Work pressure: From 1,5 to 10 bar.
• Volume: 300 – 50.000 litres.
• Approval: Directive 97/23/CE PED, art./ 3.3. mill- test.
• Internal treatment: Hot dipped galvanised at 455 °C.
• External treatment: Shot blasted sa 2,5 and hot-dipped galvanised.
• Connections: Venting, pressure gauge, supply and transport.
• Options: Victaulic groove, diffusers and horizontal/vertical position.

• Special installations

PEXL 20 mm / 40 mm

• Cross-linked polyethylene foam closed cell
• External finishing PVC coated
• Outer support made of polyester (SKY) choice of colour is optional.
• Density 30 kg/m³
• Conductivity (lambda) UNI 7745: 0°C=W/mk 0.034
• Total thickness 20/40 mm – Insulation glued to the tank

Fleece 100 mm / 70 mm

• 100% polyester white colour fibre-fleece insulation jacket.
• Outer support made of polyester (SKY) choice of colour is optional.
• Variable density of the thickness 17 Kg/m³
• Melt temperature 250°C
• Transmission properties of the water vapor 2,54 µ UNI EN 12086
• Thermal conductivity (50Kg/m³) 0.038 W/m°K UNI EN 12667
• Fire classification Euroclass B s2 d0 Class M1
• Thickness 100mm / 70mm
• Insulation jacket will be provided separately and has to be installed by the customer on site.
